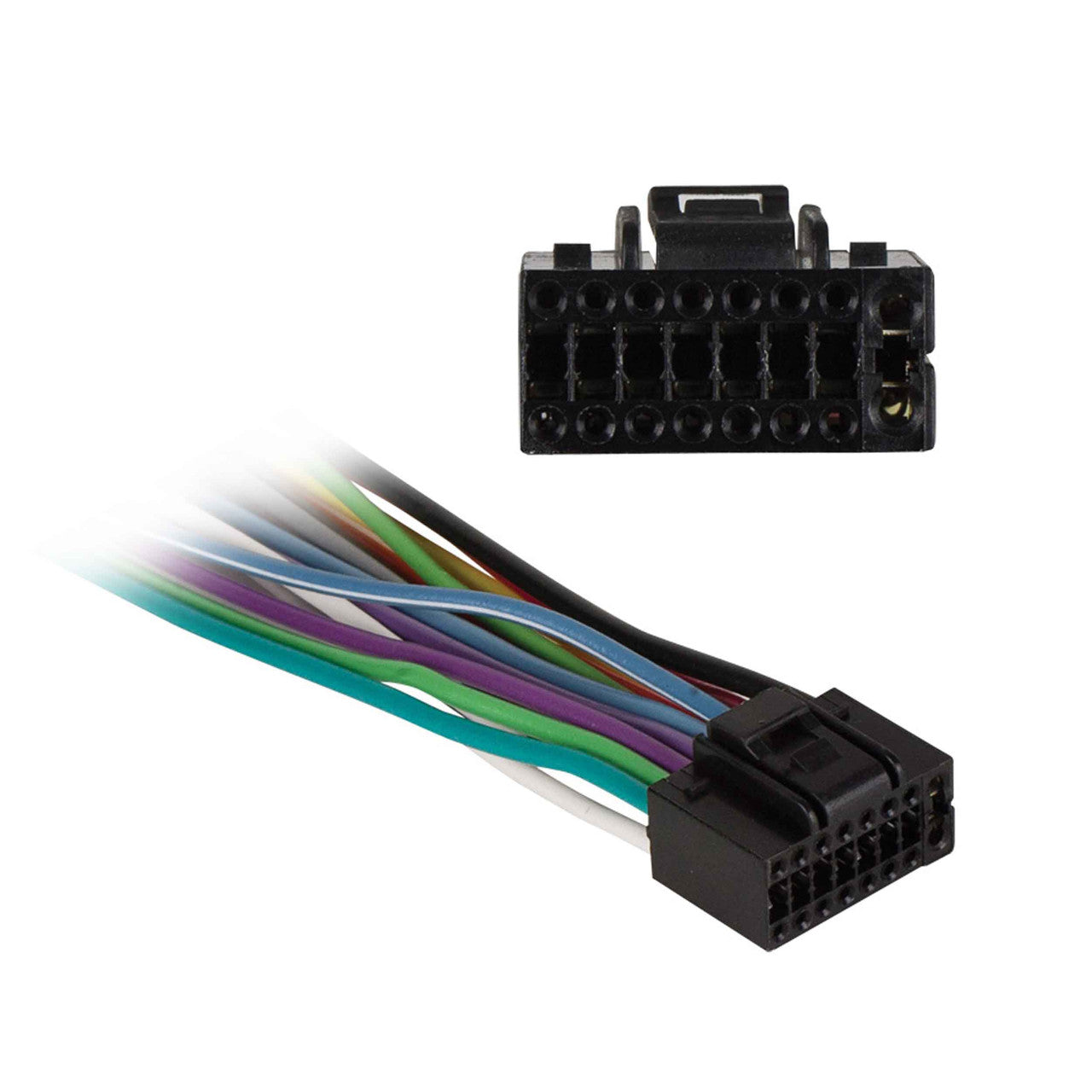

Metra JV2X8-0001 Powersports JVC 16 PIN UNIVERSAL - Smart Cable

Product Features:

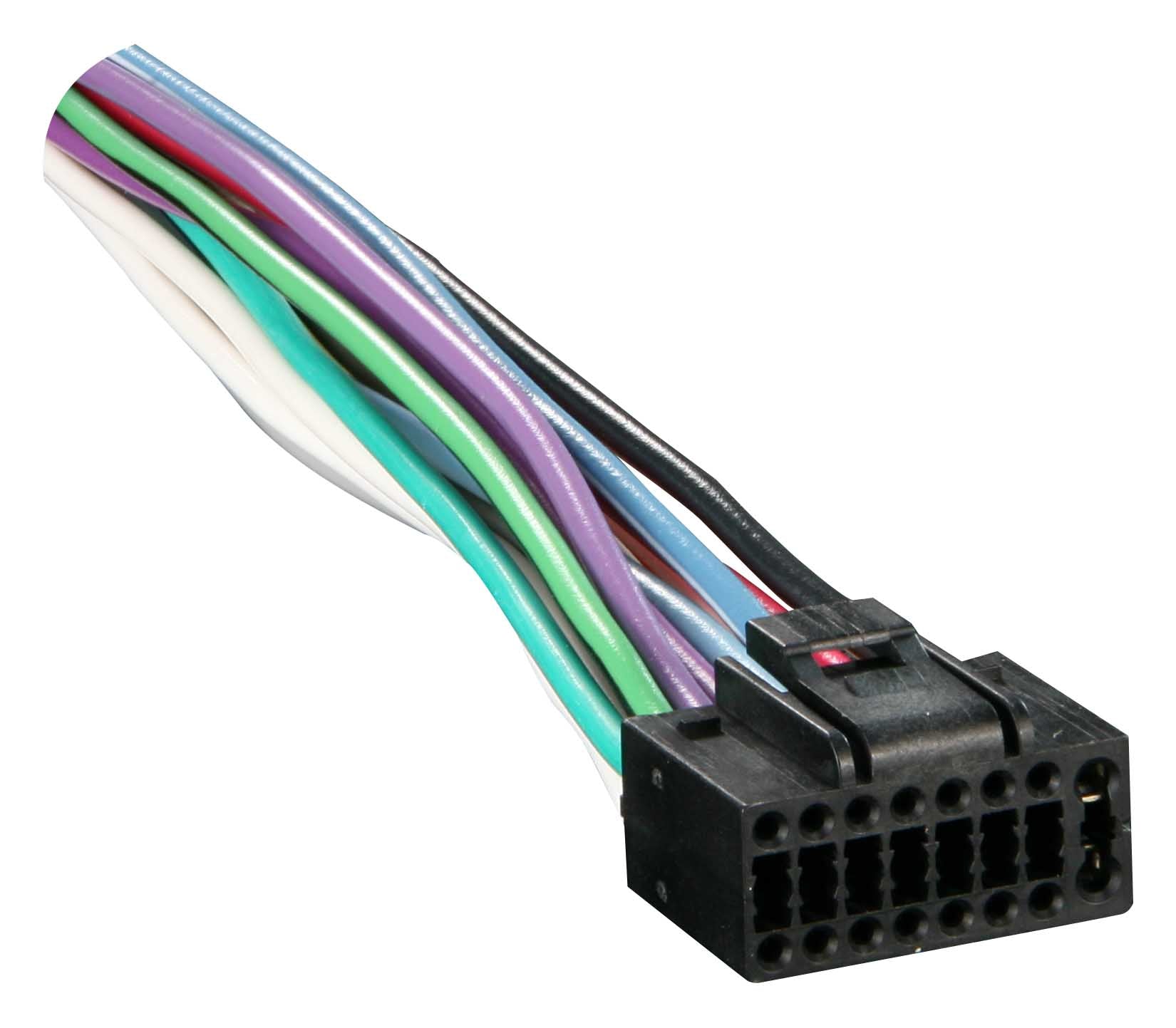

• 16-Pin Replacement Harness for Factory JVC Stereo
• Used as a replacement to lost JVC car stereo harness
• Covered with ABS plastic for added protection and reliability
• Color coded with printed labels factory quality wiring
• Plugs into most JVC stereo's without navigation

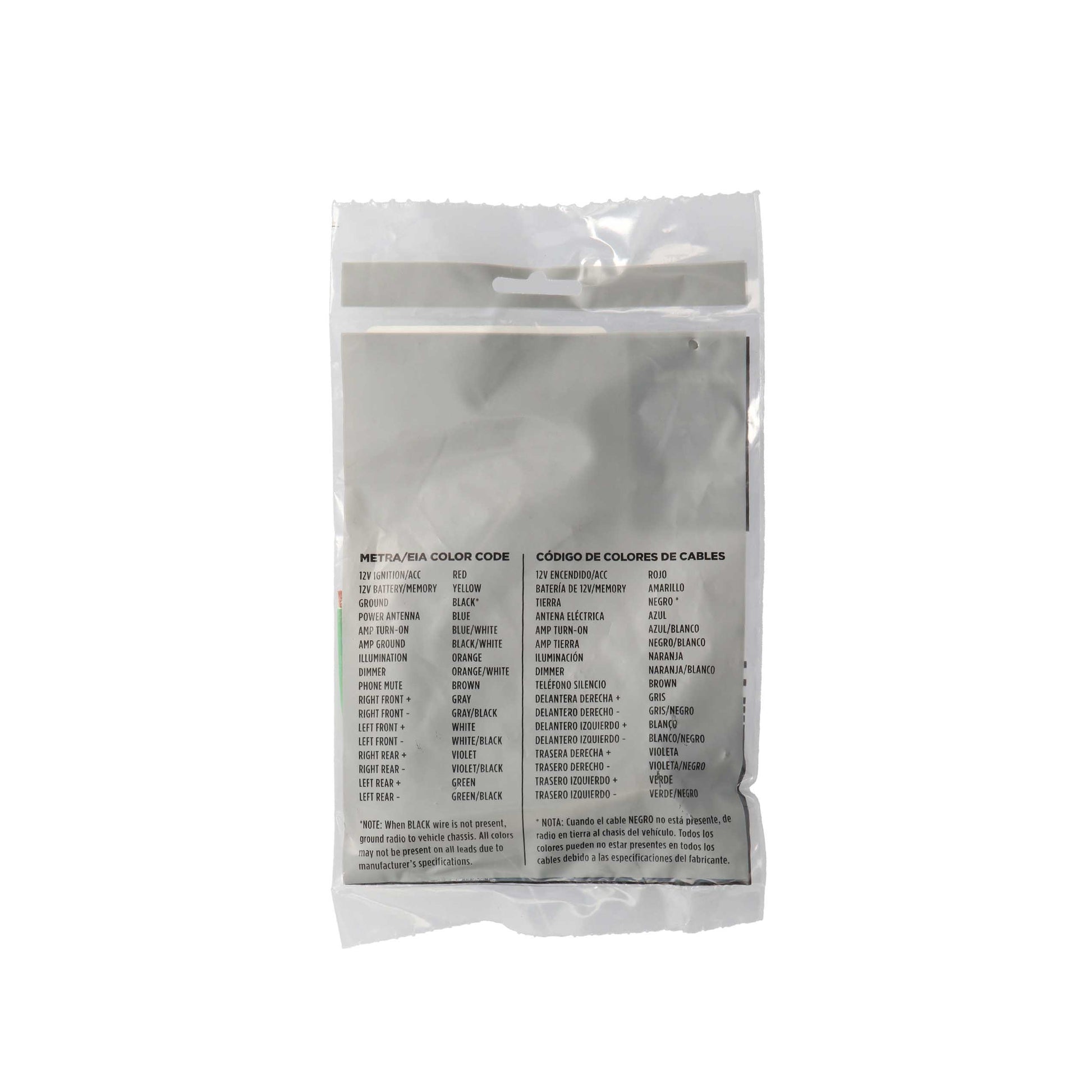

Basic Connections:
Yellow – 12V Battery/Memory
Red – 12V Ignition/Accessory
Black - Ground
Orange – Dash Light Dimmer/Illumination
Green – Left Rear Speaker (+)
Green with Black Stripe – Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
